SVL501T Online AOI for THT Insertion Lines: The Quality Gate Between Insertion and Wave Soldering

Solder paste inspection (SPI) protects the front of an SMT line, but on a THT line the equivalent quality gate is often missing. The SVL501T online AOI (AVI) from Southern Machinery closes that gap: it inspects THT/DIP component insertion in-line, before or after Wave Soldering, so missing parts, polarity errors and solder bridges are caught while rework is still cheap.

For EMS, ODM, automotive, medical and industrial-control manufacturers running through-hole or mixed-technology boards, this article explains what the SVL501T does, where it belongs in the line, what to verify before you buy, and how it pays for itself.

What is this machine used for?

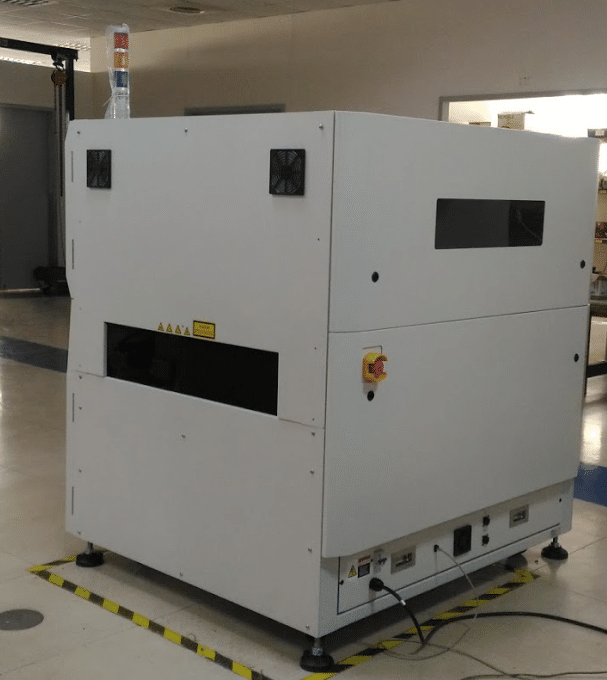

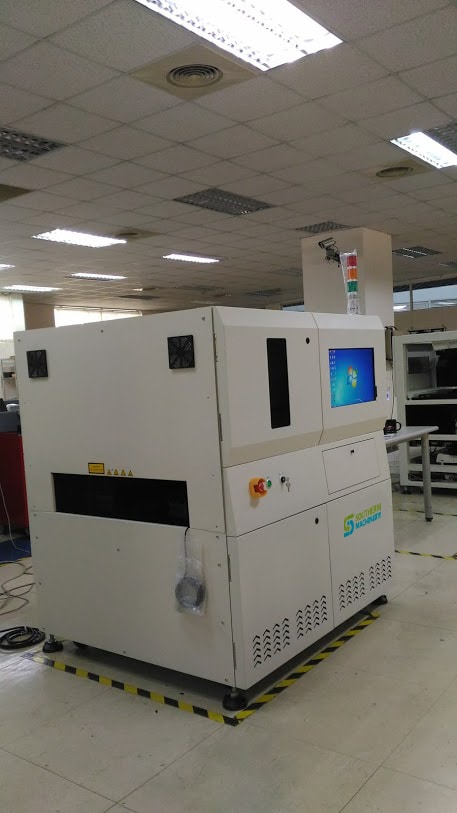

The SVL501T is a high-speed in-line AOI (AVI) built for THT/DIP assembly. It is positioned on a THT line to check component insertion quality — either before Wave Soldering (verifying that everything was inserted correctly) or after Wave Soldering (verifying solder joint quality). It is an automated alternative to visual inspection at the manual insertion station or at the wave outfeed.

Verified inspection coverage on the Southern Machinery THT Dual Sided AOI platform includes:

Inspection area	What it checks
Component presence	Missing / wrong components, optical shape recognition, color and band inspection
Polarity	Electrolytic capacitors, resistors and diodes; all components with text including ICs (character verification); connectors and polarized parts
Solder quality	Solder bridge and solder joint verification
Press-fit (optional)	Down to 0.5 x 0.5 mm²; lifted components and pin shifting (top side); pin invisible and pin unseated (bottom side)
SMD (optional)	Down to 0603 package; dropped / wrong parts, polarity, solder bridge; missing components down to 0402 package
Label OCR (optional)	Missing component, polarity check
Surface / laser height (optional)	Board surface scratch and particle; dropped solder or component; laser height detection down to 0.5 x 0.5 mm² for lifted components and pin shifting

Capabilities above are from the published SVL501T / THT Dual Sided AOI product page. Confirm exact modules, board size and options with Southern Machinery during quotation.

Why a THT insertion line needs an overall-view inspection step

THT boards are typically assembled by a mix of automatic insertion machines and manual insertion stations. Defects appear at predictable points:

• Missing or wrong components — an inserter skips a position, or an operator places the wrong value.
• Polarity errors — reversed electrolytic capacitors, diodes and connectors.
• Bent leads and unseated pins — components that look placed but will not solder reliably.
• Solder bridges — after Wave Soldering, especially on fine-pitch connectors.

If these defects pass through to functional test or to the customer, the cost of finding them multiplies. An online AOI placed between insertion and wave soldering, or immediately after the wave, converts a random visual check into a repeatable, documented 100% inspection step.

Typical application scenarios

• THT auto-insertion lines — after radial, axial or odd-form insertion machines, before the board enters Wave Soldering. Catches insertion faults while the board is still easy to rework.
• High-mix EMS / ODM lines — where manual insertion dominates and product changes frequently. The SVL501T keeps inspection quality consistent across many board types without adding operators.
• Automotive electronics — ECUs, sensors, connectors and power modules where a missing or reversed component can cause field failures. Polarity and presence checks become part of the quality record.
• Medical and industrial control — long-life products where traceability and repeatable inspection support compliance documentation.
• Mixed SMT/THT boards — optional SMD and press-fit inspection modules cover boards that combine surface-mount and through-hole technology.

How the SVL501T fits into a complete PCB assembly line

A typical THT or mixed line layout with the SVL501T:

1. Solder paste printing (for SMT boards) — optional SPI before placement.
2. Pick and Place — SMD components placed (Southern Machinery S-200V, S-530S series and full-line configurations).
3. THT insertion — automatic insertion machines (radial, axial, odd-form) plus manual stations for remaining through-hole parts.
4. SVL501T online AOI (AVI) — inspects insertion quality before Wave Soldering: missing parts, polarity, bent leads, pin seating.
5. Wave Soldering — completes THT solder joints (Southern Machinery S-WS350B, S-WS450 lead-free dual-wave systems).
6. Second inspection pass (optional) — SVL501T re-checks solder bridges and joint quality after the wave.
7. Board handling and unloading — loaders, conveyors, buffers and unloaders keep the line flowing.

Southern Machinery supplies each of these steps — SMT, THT, Wave Soldering, board handling and inspection — as a single accountable line, not just individual machines.

Key selection parameters for a THT online AOI

Before requesting a quotation, verify these parameters with the supplier:

• PCB dimensions and conveyor width — maximum board size the AOI accepts, and whether it matches your panel format.
• In-line integration — conveyor height, SMEMA interface, and whether the machine slots into your existing line without a lift or custom transfer.
• Component mix — THT only, or mixed with press-fit and SMD. This decides which optional inspection modules you need.
• Inspection position — before Wave Soldering (insertion check), after Wave Soldering (joint check), or both.
• Defect coverage — presence, polarity, solder bridge, label OCR, surface and laser height options, and the minimum component sizes quoted.
• Data output — SPC/MES reporting so inspection results feed your quality system.
• Programming and changeover — how programs are created and how long a product changeover takes in high-mix production.

None of these are "nice to have" details — they determine whether the AOI actually fits your boards and your line speed.

ROI, quality and throughput perspective

• Fewer escapes — 100% in-line inspection replaces sampling or visual checks, so defects are caught at the point where rework is cheapest.
• Lower rework cost — a missing part found before Wave Soldering costs minutes to fix; the same defect found at functional test costs a full debug cycle.
• Consistent quality — inspection does not depend on operator fatigue or shift changes; the same criteria apply on every board.
• Documented quality data — inspection results support customer quality reports, PPAP-style documentation and MES traceability.
• No added headcount — the AOI replaces or augments manual inspection positions rather than adding labor.

ROI depends on board volume, defect rate and labor cost in your region; ask Southern Machinery to model it against your actual line data.

FAQ

Where does the SVL501T go in a THT line — before or after Wave Soldering?

Both. It is an in-line AOI designed to run before Wave Soldering for insertion verification, after Wave Soldering for solder bridge and joint checks, or in both positions on longer lines.

Does it detect polarity errors?

Yes. The platform checks polarity on electrolytic capacitors, resistors and diodes, plus all components with text (character verification on ICs) and connectors with polarity requirements.

Can it inspect SMD components on mixed boards?

Optionally. SMD inspection covers down to 0603 package, with missing-component detection down to 0402 package, plus polarity and solder bridge checks.

What about press-fit parts?

Press-fit inspection is an optional module, covering lifted components and pin shifting on the top side and pin invisible / unseated conditions on the bottom side, down to 0.5 x 0.5 mm².

Is the SVL501T an AOI or an AVI?

It is an in-line AOI (AVI) applied to THT/DIP assembly — the term AVI (Automated Visual Inspection) is commonly used for through-hole inspection, and the machine performs the same automated optical verification role for insertion lines.

How do I get a configuration and quotation?

Send your board size, component mix, line speed and whether you need press-fit, SMD or OCR options to jasonwu@smthelp.com (WhatsApp: +86 13602562576). Southern Machinery confirms exact options and parameters before quoting.
