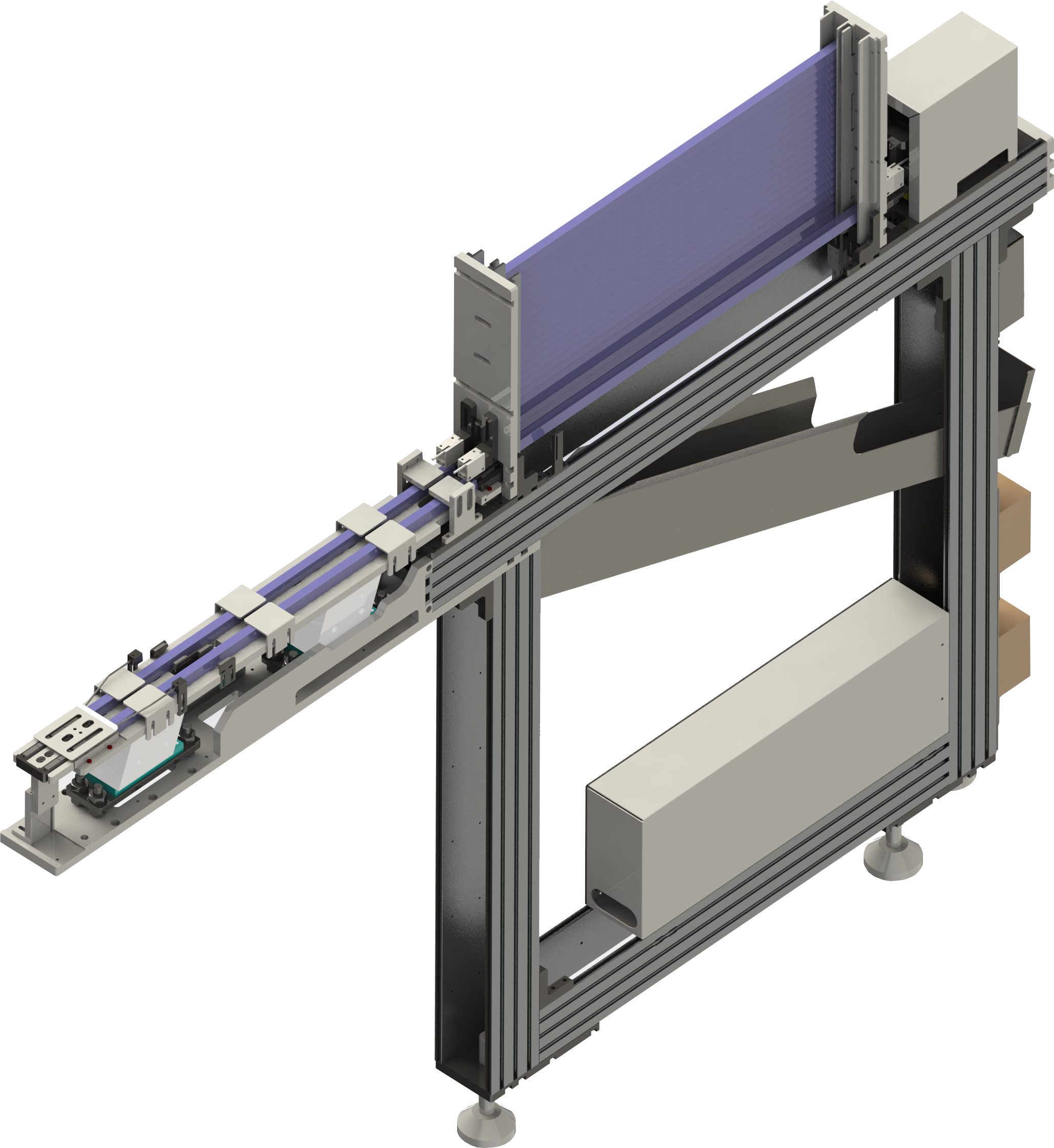

STF-1002 Stacked Tube Feeder: Reliable Tube-Fed Component Supply for SMT Lines

Excerpt: Automate tube-fed SMD component supply with the STF-1002 stacked tube feeder from Southern Machinery. Designed to streamline SMT lines, reduce operator reload stops, and support EMS, automotive, and industrial electronics production.

What is this machine used for?

The STF-1002 Stacked Tube Feeder is an SMT peripheral device that supplies components delivered in tubes (stick tubes) to a pick-and-place machine. Many common SMD packages — SOIC, DIP, SOT, and other tube-packed ICs and passives — are shipped in rigid plastic tubes. Instead of handing tubes to the mounter one at a time, the STF-1002 holds multiple tubes in a stacked magazine and feeds them automatically to the pick position, so the placement head can take components continuously.

Southern Machinery positions the STF-1002 as a "high-quality feeding solution designed to streamline your production process," handling a wide range of materials across multiple industries. Its purpose is straightforward: keep the pick-and-place machine fed with tube-packaged components, eliminate frequent manual tube changes, and reduce the idle time that eats into line throughput.

Typical Application Scenarios

Tube feeders earn their keep wherever tube-packaged components appear in volume:

EMS / Contract Manufacturing — Mixed-technology boards with SOIC, DIP, and connector packages that arrive in tubes. The stacked magazine lets operators load a batch of tubes and walk away instead of babysitting the feeder.
Automotive Electronics — ECUs, body-control modules, and infotainment boards with tube-packed logic and driver ICs. Consistent feeding reduces placement stops on high-mix lines.
Industrial Control — PLC, inverter, and motor-drive boards with DIP/SOIC ICs, where batch sizes vary and changeover speed matters.
Medical Electronics — Mid-volume, high-reliability PCBs where traceability and consistent placement quality are critical.
LED and Power Supply — Boards mixing SMD passives with tube-fed ICs, typical of lighting drivers and switch-mode power supplies.

Any SMT line that runs tube-packaged components is a candidate — especially when operators currently reload single-tube feeders by hand dozens of times per shift.

How It Integrates into a Complete PCB Assembly Line

The STF-1002 sits on the placement side of the line, mounted to the pick-and-place machine's feeder bank like other SMT feeders:

Stencil printing deposits solder paste on the PCB.
Pick-and-place machines mount SMDs. The STF-1002 occupies a feeder slot and presents tube-fed components at the correct pick position.
Reflow oven solders the SMD side.
THT / wave soldering or selective soldering handles through-hole components for mixed-technology boards.
Cleaning, inspection (AOI/SPI), and board handling complete the line.

Because tube feeders are a standard SMT peripheral category, the STF-1002 is designed to work alongside mainstream mounters. Southern Machinery supplies the full line — stencil printers, mounters, reflow ovens, wave soldering, board handling, and cleaning — so the feeder can be specified as part of a complete line or retrofitted into an existing one.

Key Selection Parameters

When evaluating a stacked tube feeder for your line, confirm these points with Southern Machinery (values are application-dependent and should be matched to your components and mounter):

Tube format compatibility — Tube width, length, and pin-count packages the feeder accepts (e.g., SOIC, DIP, SOT sizes).
Stack capacity — How many tubes the magazine holds before reload; this directly drives operator reload frequency.
Mounter compatibility — Feeder base/slot interface and electrical/communication protocol for your pick-and-place machine model.
Component types — Which packages and lead counts the feeder is set up to handle in your product mix.
Feeding reliability — How the feeder advances tubes and presents components without jams or double-feeds.
Changeover — How quickly the feeder can be re-loaded or swapped between tube types on high-mix lines.
ESD protection — Grounding and static-safe materials for sensitive IC packages.

ROI, Quality & Throughput Perspective

The business case for a stacked tube feeder is built on labor and line efficiency:

Fewer reload stops. A stacked magazine extends the time between manual tube changes, so the mounter stays in production longer. Every reload stop is lost placement time across the whole line.
Less operator labor. Instead of hovering at the machine, operators load a batch of tubes and spend their time on higher-value tasks — kitting, inspection, line balancing.
Consistent feeding = fewer placement misses. Automated, repeatable tube advancement reduces the human variability that causes misfeeds, missed picks, and downstream rework.
Better line balance. Removing a recurring bottleneck at the feeder bank lets upstream and downstream stations run at their natural pace.
Scalability. The same feeder logic scales across product families that share tube packaging, simplifying line configuration on high-mix EMS floors.

For a factory running tube-packed ICs daily, the payback comes from recovered placement time and reduced operator attention — not from a single dramatic metric, but from consistent, compounding line efficiency.

FAQ

Q: What types of components can the STF-1002 feed?

A: It is designed for components supplied in tubes — commonly SOIC, DIP, SOT, and other tube-packed ICs and passives. The exact tube sizes and packages it accepts should be confirmed against your component list and mounter configuration.

Q: Does it integrate with existing SMT lines?

A: Yes. Tube feeders are a standard SMT peripheral category that mounts to the pick-and-place machine's feeder bank. Southern Machinery can advise on compatibility with your mounter model and interface.

Q: How does a stacked tube feeder differ from a single-tube feeder?

A: A stacked feeder holds multiple tubes in a magazine and advances them automatically, so operators reload less frequently than with single-tube feeders — reducing placement stops on long production runs.

Q: What industries use this equipment?

A: EMS/contract manufacturers, automotive electronics, industrial control, medical electronics, and power supply producers that run tube-packaged SMD components.

Q: How does automation improve quality versus manual tube feeding?

A: Automated tube advancement is repeatable and consistent, reducing misfeeds and missed picks caused by manual handling. It also lowers the risk of component damage from frequent operator contact.

Q: Can I see the STF-1002 in operation?

A: Yes — Southern Machinery publishes machine videos on its YouTube channel, and the product page includes a 3D drawing link for closer inspection. Contact the team for live demonstrations or line-specific advice.
