Dirty pallets, carriers and fixtures quietly transfer flux, grease and dust onto your PCBs — and that contamination shows up later as solder defects, handling marks and rework. The SME-5200 Aqueous Pallet Cleaning System from Southern Machinery (Shenzhen, China; 237+ global customers since 2011) automates the complete wash → rinse → dry cycle in a single machine, so SMT fixtures, pallets, trays, reflow oven coolers and wave-soldering hardware come out clean and dry, ready to return to the line.

What is this machine used for?

The SMT pallet fixture cleaning machine is offline process-support equipment: it cleans the hardware that carries your boards, not the boards themselves. The SME-5200 removes grease, flux residue and dust from:

SMT fixtures and carriers
Pallets and trays that circulate through the line
Reflow oven coolers and filters
Wave-soldering oven claws, chains and nets

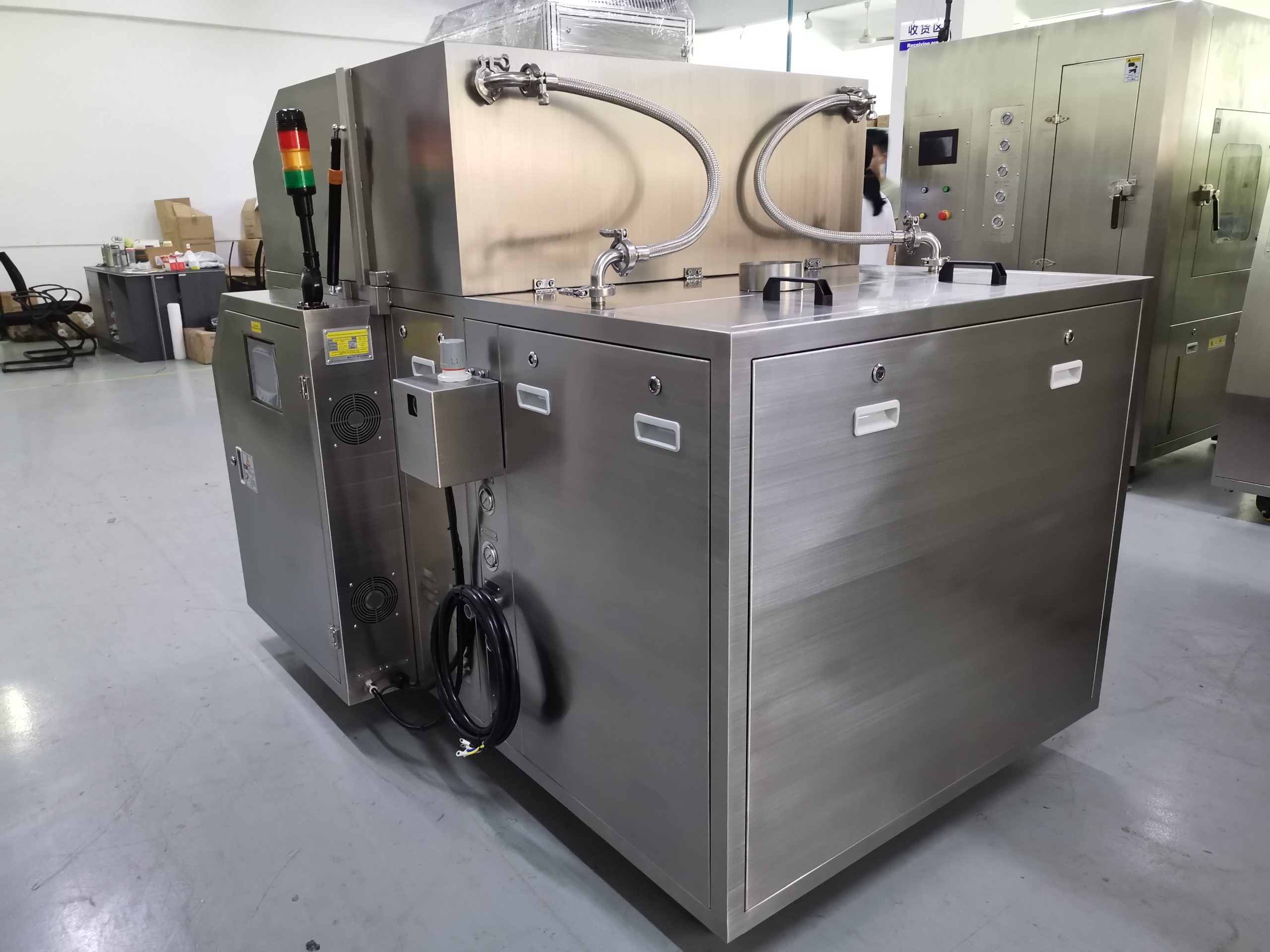

The machine combines a wash unit, a rinse unit, a dry unit, a rotation cleaning basket and a PLC control unit. Operators load dirty fixtures into the rotating basket, set the parameters on the touch panel, and press start — the machine automatically completes the wash, rinse and dry process. Fixtures come out clean and dry, ready to use at any time.

Verified platform details from the SME-5200 product page (smthelp.com):

Cleaning basket: Φ1000 mm × H200 mm rotating batch basket; customized pallet-holder baskets available for specific fixture geometries
Tanks: 80 L cleaning-fluid tank and 80 L rinse tank with separated pipe systems
Spray coverage: top, bottom and front spray for complete 720° coverage
Filtration: three-stage cleaning filter (2 mm pump-protection screen, 100 µm solid-particle filter, 20 µm flux filter core) plus a two-stage rinse filter, extending fluid life and cutting consumable cost
Cycle times: clean 3–20 min, rinse 1–2 min, dry 10–20 min; total batch cycle roughly 30–40 min
Drying: compressed-air cut followed by hot-air drying — parts leave the machine dry and ready to use
Construction: full SUS304 stainless steel body, resistant to acid and alkali
Control: Mitsubishi PLC with touch panel; Schneider contactors and relays; CKD solenoid valves; OMRON power unit; pressure sensors on cleaning and rinsing pipes alarm outside the set range to protect the machine and prompt maintenance
Utilities: 380 VAC, 3-phase, 50/60 Hz (34 kW installed, about 13 kW during normal operation); compressed air 0.5–0.7 MPa at 800–1000 L/min
Footprint: 1380 (L) × 2000 (W) × 1400 (H) mm, approximately 600 kg net weight

Typical applications

1. Reflow oven maintenance. Coolers and filters accumulate flux volatiles over time, degrading heat-exchange efficiency and destabilizing the reflow profile. Scheduled batch cleaning keeps the oven profile consistent and protects expensive oven hardware.

2. Wave-soldering pallets and carriers. Pallets used in wave and selective-solder lines pick up flux and solder splash on every pass. Clean pallets reduce contamination transferred to the PCB underside and keep solder-joint quality repeatable.

3. Wave-soldering claws, chains and nets. Transport hardware collects flux, dross and solder balls. Routine cleaning keeps the conveyor system moving smoothly and prevents drag-out onto boards.

4. SMT carrier trays and tooling. Trays, masks and alignment tooling that circulate through printing, placement and reflow accumulate dust and paste residue — a recurring source of handling defects that is easy to overlook.

5. EMS changeover batches. Factories running mixed products can batch-clean all pallets and fixtures between campaigns in parallel with production, keeping changeover windows predictable and the line available.

How it fits into a complete PCB assembly line

The SME-5200 does not sit in the product flow, so it never adds to line takt time. It runs as a scheduled maintenance step alongside production — exactly the kind of process-support capability a smart EMS factory needs without overbuilding the main assembly line.

Think of the cleaning ecosystem around a complete SMT/THT line:

Stencil cleaning — SME800 electric stencil cleaner or S-1688 pneumatic stencil cleaner keep solder paste stencil apertures clear
Pallet and fixture cleaning — the SME-5200 keeps carriers, pallets, oven coolers and wave-soldering hardware clean
PCBA cleaning — SME6200 online PCBA cleaner and SME5600 remove flux residues from assembled boards where the process requires it
Nozzle and squeegee care — S-6200 nozzle cleaner and SME220 auto squeegee cleaner protect placement and printing quality
Misprint recovery — SME210 handles misprinted PCBs before they enter reflow

Combined with Southern Machinery's pick-and-place, THT insertion, wave-soldering and board-handling equipment, this cleaning range closes the loop on process quality: clean stencils, clean nozzles, clean pallets and clean boards each remove a distinct source of defects.

Key selection parameters

When evaluating a pallet or fixture cleaning machine, compare these parameters against your own production data — verify exact values on the supplier's datasheet for your model:

Basket or chamber size — will it physically fit your largest pallet, carrier or oven filter? (SME-5200 standard basket: 1 m diameter, with customized pallet-holder baskets available)
Contamination profile — the flux chemistry you run (no-clean vs. water-soluble), grease, solder balls and dust determine the cleaning method and filtration you need
Throughput — pallets/fixtures per day versus batch cycle time; the SME-5200 runs roughly 30–40 min per batch including drying
Fluid management — tank capacities, filtration stages (screen, filter, filter core) and how often filter elements must be replaced — the SME-5200's cleaning filter elements are typically changed every 15–30 days depending on contamination levels
Drying capability — compressed-air cut plus hot-air drying means fixtures are ready immediately rather than air-drying on racks
Utilities and footprint — power supply (380 VAC 3-phase), compressed-air flow, heating capacity and floor space
Automation and control — PLC with touch panel, recipe settings, pressure sensors and alarms, and an English operation interface

ROI and quality perspective

Quality. Contamination transferred from a dirty pallet or fixture onto a PCB shows up as solder defects, ionic residues or handling marks — all of which become rework or field returns. A repeatable, automated clean-rinse-dry cycle removes that variability from the process.

Labor. Manual cleaning with brushes and solvents is slow, inconsistent and exposes operators to chemicals. The SME-5200 replaces it with one button press and a monitored cycle, freeing operators for value-added work.

Asset life. Clean reflow coolers and filters run more efficiently; clean wave-soldering claws, chains and nets wear more evenly. Scheduled cleaning extends the life of the hardware itself.

Cost control. Three-stage filtration and separated fluid/rinse systems extend cleaning-fluid life and reduce water consumption, directly lowering per-batch consumable cost.

For an EMS factory running multiple lines, the machine pays back through reduced rework, lower consumable spend and predictable maintenance windows — without touching line takt time.

FAQ

What is an SMT pallet fixture cleaning machine?

An SMT pallet fixture cleaning machine is offline batch-cleaning equipment that removes flux, grease, solder residue and dust from pallets, carriers, fixtures and other process hardware using water-based cleaning fluid, followed by rinsing and hot-air drying. Southern Machinery's SME-5200 automates all three stages in one machine.

What contaminants does the SME-5200 remove?

The SME-5200 is designed to clean grease, flux residue and dust from SMT fixtures, pallets, trays, reflow oven coolers and filters, and wave-soldering claws, chains and nets.

How long does one cleaning cycle take?

On the SME-5200, cleaning takes 3–20 minutes, rinsing 1–2 minutes and drying 10–20 minutes — a total batch cycle of roughly 30–40 minutes depending on contamination level and programmed parameters.

Can it clean wave-soldering pallets and carriers?

Yes. Wave-soldering pallets, claws, chains and nets are among the intended applications, and customized pallet-holder baskets can be provided for specific fixture geometries.

What maintenance does the machine need?

Cleaning and rinse filters are stainless steel and can be cleaned regularly; cleaning filter elements are typically replaced every 15–30 days depending on contamination levels. Pressure sensors on the cleaning and rinsing pipes alarm when values fall outside the set range, prompting maintenance.

What utilities does the SME-5200 require?

The machine requires a 380 VAC, 3-phase, 50/60 Hz power supply (about 13 kW during normal operation) and compressed air at 0.5–0.7 MPa with 800–1000 L/min flow.
