S-680A SMT Reel Scrap Tape Cutter: Under-Cart 5S & ESD Automation by Southern Machinery

Every finished SMT reel leaves behind a long tail of scrap carrier tape. In most factories, an operator stops what they are doing, reaches for scissors, and manually cuts that tape at every reel change - shift after shift. That small, repetitive task adds up to real lost placement time, messy feeder-cart areas, and audit findings on 5S and ESD housekeeping.

The S-680A SMT Reel Scrap Tape Cutter from Southern Machinery mounts directly under your pick-and-place feeder cart and cuts scrap carrier tape automatically into compact pieces the moment it leaves the feeder. Operators stay on value-added placement and changeover work, waste bins stop filling in hours, and your line keeps the tidy, audit-ready discipline that EMS, automotive electronics, medical electronics and industrial control customers expect.

What is this machine used for?

The S-680A is an under-cart SMT line housekeeping machine that automatically cuts scrap carrier tape into compact, easy-to-collect pieces as it exits the feeder. It replaces manual scissor cutting at the feeder cart with one-button automatic rotary gear cutting, so scrap tape goes from feeder to collection bin without operator handling. It is used wherever pick-and-place lines run reel-fed tape components: high-mix EMS factories, automotive and medical electronics lines with strict 5S/ESD requirements, and multi-line plants that want consistent housekeeping across every feeder cart.

Why scrap carrier tape is a hidden production cost

Manual tape handling rarely shows up on a cost report, but it taxes the line every day:

• Operator time as waste handling - cutting tape ends at every reel change pulls skilled operators away from placement and changeover work.
• Tape drifting everywhere - uncut scrap tangles around feeder carts and aisles, creating a housekeeping problem that shows up in customer audits.
• Scissors mean cut risk - hand-cutting thousands of tape ends per day exposes operators to blade injuries that automated cutting eliminates.
• Mixed tape formats - paper tape and embossed plastic tape behave differently; one fixed manual routine rarely handles both cleanly.
• Bins filling too fast - loose, uncut tape fills waste bins in hours, forcing repeated line-side trips just to empty them.
• Consumable drain - cheap cutters dull quickly and jam, trading a small purchase price for endless blade swaps and downtime.

How the S-680A removes manual tape cutting

The S-680A uses rotational circular high-speed steel (HSS) gear blades that draw tape in and cut it automatically at 76 mm/s - fast enough to keep pace with every reel change on the cart. Operation is simple: rotate the emergency stop switch to ON, press ON in AUTO mode, and the blade unit cuts continuously until the collection bin is removed or the emergency stop is pressed.

• Zero manual cuts at the cart - scrap tape goes from feeder to sealed bin without operator handling.
• Longer blade lifecycle - the HSS rotary blade design delivers up to 4x the lifecycle of conventional cutter designs (manufacturer claim, subject to your tape mix), meaning fewer swaps and lower consumable spend.
• Quiet and low-power - under 70 dB noise at 100 W on a standard 220 V single-phase supply, so it can live anywhere on the shop floor.
• Built for safety - the cutting path is enclosed and an emergency stop sits on the front panel, removing the scissor cut risk it replaces.

Key specifications at a glance

Values support initial evaluation and remain subject to final technical confirmation against your feeder cart and tape formats.

| Parameter | S-680A standard configuration |

|---|---|

| Cutting mechanism | Rotational circular gear blades, high-speed steel |

| Compatible tape | Paper carrier tape 8-32 mm; embossed plastic tape (very thin vinyl tape not recommended) |

| Cutting speed | 76 mm/s |

| Cutting length | 5-150 mm, adjustable via PLC control with speed regulation |

| Effective cutting slot | 755 mm |

| External dimensions (L x W x H) | 900 x 220 x 400 mm |

| Net weight | Approx. 45 kg |

| Power supply | 220 VAC, single phase, 50/60 Hz |

| Power consumption | 100 W |

| Noise level | Less than 70 dB |

| Collection | Front slide-out collection bin for cut tape pieces |

| Mobility | Lockable casters for under-cart positioning |

Feeder cart compatibility

The S-680A is designed to fit the feeder carts already running in your line, with verified installation references including:

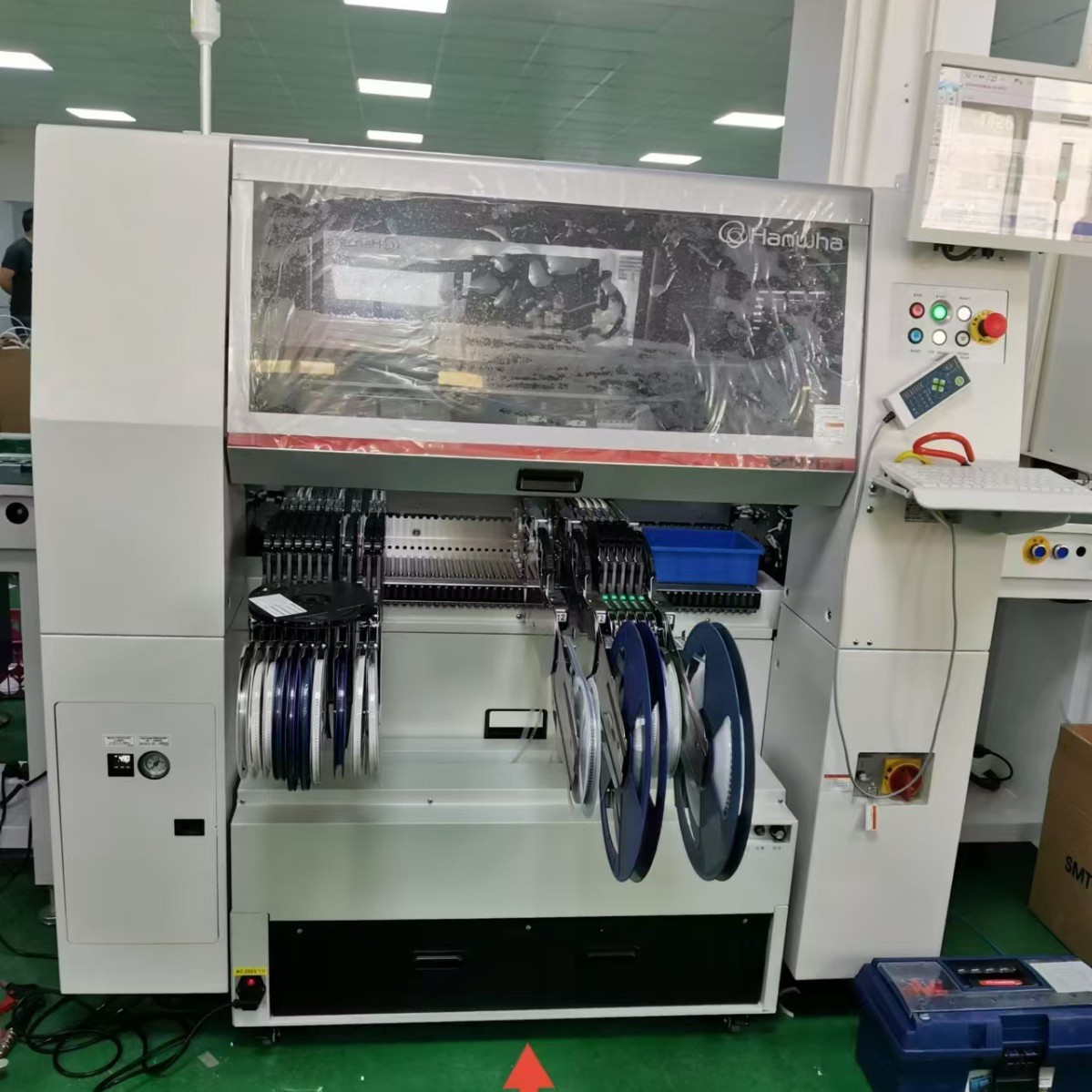

• Hanwha / Samsung SM series: SM411, SM421, SM471, SM481, SM482, plus, S1 and S2 feeder carts

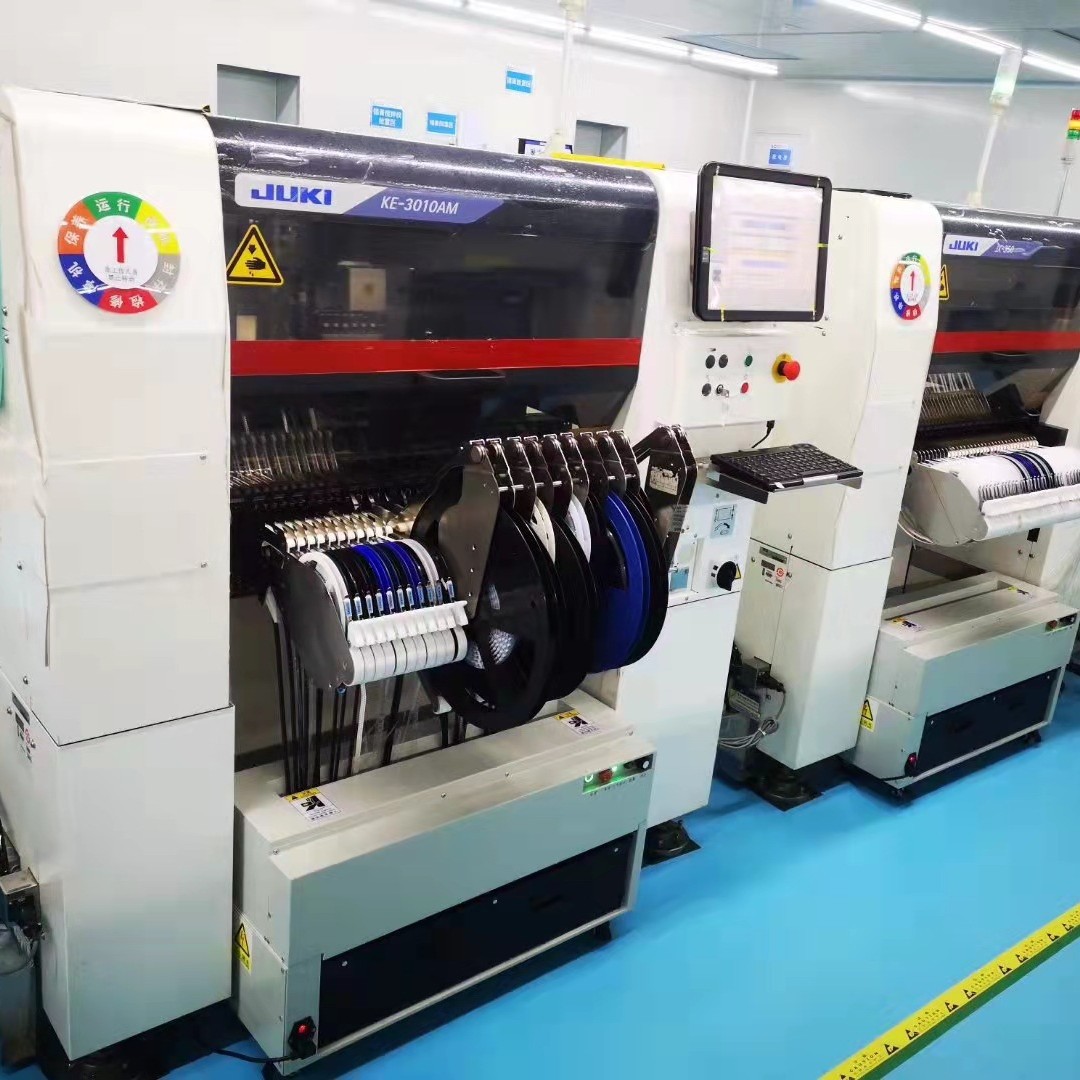

• JUKI KE series feeder trolleys (e.g., KE-3010AM line references)
• Sony and domestic pick-and-place lines

Body length and bin layout can be customized to match your cart footprint. Custom dimensions, electrical standards and cart interfaces depend on your actual feeder trolley and tape mix, and are confirmed after technical review.

Typical applications

• High-mix EMS lines with frequent reel changes, where manual tape handling repeats dozens of times per shift
• Automotive electronics and industrial control factories that run 5S programs and regular customer audits
• Medical electronics lines where clean, organized line-side areas support quality discipline
• Multi-line fleets that want the same under-cart housekeeping standard on every feeder cart

How the S-680A fits into a complete PCB assembly line

The S-680A installs under the feeder cart in the SMT placement zone and works in parallel with your existing line - it does not change the placement cycle or require new process steps. It is one element of the line housekeeping layer that keeps pick-and-place areas organized, and it complements the complete PCB assembly solutions Southern Machinery supplies: SMT, THT, wave soldering, board handling and inspection equipment, all supported by one supplier with spare parts, professional training and global service.

From cart review to production, the deployment flow is straightforward:

1. Cart review - share feeder cart models, tape formats and line layout photos.
2. Technical consultation - tape mix, bin capacity targets and 5S goals are confirmed, typically within 24 hours.
3. Configuration - standard 900 mm body or custom length matched to your cart footprint.
4. Installation training - simple AUTO operation: release E-stop, press ON; operators are trained in minutes.
5. After-sales guidance - spare blades, maintenance guidance and rapid technical follow-up.

Key selection parameters checklist

Before requesting a quote, prepare these details so Southern Machinery can confirm the right configuration:

• Feeder cart model and mounter brand (Hanwha/Samsung, JUKI, Sony, or domestic)
• Tape widths and formats - paper carrier tape 8-32 mm, embossed plastic tape; note any very thin vinyl tape
• Line layout and available space under the cart (standard 900 mm body, custom lengths available)
• Power availability - 220 VAC single phase, 50/60 Hz, ~100 W per unit
• Bin capacity and 5S goals for each line-side cart
• Quantity of feeder carts that need housekeeping coverage

ROI, quality and capacity value

The S-680A pays back through the work it removes and the discipline it protects. Operators stay on placement and changeover instead of waste handling, which supports more boards per shift depending on line configuration. Waste bins empty less often, reducing line-side traffic. Fewer blade swaps lower consumable spend. Eliminating scissor cutting removes a real cut-risk hazard, and a consistently tidy, ESD-disciplined feeder-cart area is visible proof of process control during customer audits. Actual results depend on your line layout, tape mix and shift pattern; Southern Machinery confirms configuration and expected benefits during technical review.

FAQ

What types of tape can the S-680A cut?

Paper carrier tape from 8 to 32 mm wide and embossed plastic tape. Very thin vinyl tape is not recommended. If you run an unusual tape format, send a sample description with your inquiry and compatibility is confirmed before quotation.

Which pick-and-place brands does it fit under?

Installation references include Hanwha/Samsung SM411, 421, 471, 481, 482, plus, S1 and S2 feeder carts, JUKI KE-series trolleys, Sony lines and domestic mounter brands. The body length can be customized to match your cart footprint.

How does automatic mode work?

Rotate the emergency stop switch to the ON position, then press ON at AUTO. The blade unit starts moving and cuts tape continuously until the collection bin is removed or the emergency stop is pressed.

What routine maintenance is required?

Empty the collection bin as required, replace the blade when cutting quality drops, check the helical gear every 3 months, lubricate the LM shaft as required, and check belt tension monthly. The high-speed steel rotary blade design delivers up to 4x the lifecycle of conventional cutters.

Is it safe for operators?

Yes. The cutting path is enclosed, an emergency stop is on the front panel, and the machine removes the need for manual scissor cutting - the cut-risk task it replaces was the hazard.

How do I get a price and delivery time?

Email info@smthelp.com or WhatsApp +86 136 0256 2576 with your cart models, tape formats and quantity. Quotation and delivery schedule are provided after technical confirmation - typically the same working day.

Request a configuration for your feeder carts

Tell us which mounters run your line, the tape widths you cut today and how many carts need housekeeping. Southern Machinery replies with a configuration, quotation and delivery schedule.

• Email: info@smthelp.com
• WhatsApp: +86 136 0256 2576
• Website: www.smthelp.com

About Southern Machinery

Southern Machinery is a Shenzhen-based manufacturer founded in 2011, focused on SMT/THT PCB assembly automation equipment and serving 237+ customers globally. Beyond individual machines, the company provides complete line solutions across SMT, THT, wave soldering, board handling and inspection, backed by high-efficiency, cost-effective engineering, global service, spare parts support and professional training. Automation partner, not just supplier.
