SMT Reel Scrap Tape Cutter by Southern Machinery: Operator Safety & Ergonomics

What Is This Machine Used For?

Q: What is the S-680A SMT Reel Scrap Tape Cutting Machine?

A: The S-680A is a benchtop station that automatically cuts spent SMT carrier tape — the paper and embossed plastic tape left behind after a Pick and Place machine consumes a component reel — into short, uniform segments and collects them in an integrated bin. It replaces manual scissors-based cutting, which is the source of repetitive strain, laceration risk, and floor clutter on high-volume SMT lines.

Q: What problem does it solve on the factory floor?

A: After every reel changeover, an operator must dispose of the empty carrier tape. Done by hand, this means 30–60 minutes per shift of repetitive scissor cutting. That single task concentrates three risks at once: ergonomic strain, blade injury, and scattered tape debris. The S-680A removes the operator from that loop entirely.

Q: What tape types does it handle?

A: It cuts paper carrier tape (8–32 mm) and embossed plastic carrier tape (8–56 mm), covering the standard widths used across Fuji, JUKI, Yamaha, Panasonic, Samsung/Hanwha, and ASM/SIPLACE Pick and Place platforms.

Typical Application Scenarios

The S-680A earns its place wherever carrier-tape volume is high and workplace-safety scrutiny is rising:

EMS / Contract Manufacturing — multi-line factories where operators rotate through manual cutting duty and where ISO 45001 and 5S audits penalize loose tape and hand-tool injuries.
Automotive Electronics — PCBA lines where clean-floor discipline and traceable waste handling are contract requirements, and where operator turnover is costly.
LED & Power Supply Manufacturing — long, high-volume SMT runs that consume reels continuously and generate the most carrier-tape scrap.
Medical & Industrial Control Electronics — clean, controlled environments where tape dust and debris must not contaminate assemblies.

How It Integrates Into a Complete PCB Assembly Line

The S-680A is waste-side equipment: it sits beside the Pick and Place line or in the Feeder preparation area and processes tape after a reel is consumed. It requires no machine-to-machine interface and no MES link — it is a standalone station that plugs into standard 220V single-phase power.

In a complete line, the S-680A closes the loop at the end of the material flow. The Pick and Place machine consumes the reel, the empty carrier tape is fed into the S-680A, the PLC-controlled rotary blades cut it into uniform segments, and the integrated bin collects the result for recycling or disposal. Paired with Southern Machinery's S-6200 Nozzle Cleaning Machine, it forms a complete SMT auxiliary-hygiene package — clean floor, clean Nozzles, higher CPH.

Key Selection Parameters

When evaluating an automatic scrap-tape cutter, confirm these parameters with the vendor:

Tape width and type coverage — verify the machine handles your paper and embossed plastic tape widths (the S-680A covers 8–32 mm paper and 8–56 mm embossed plastic).
Cut length adjustability — confirm PLC-adjustable cut length (5–150 mm) so you can optimize segment size for your recycling or disposal contract.
Cutting speed — check continuous-feed throughput (~76 mm/sec on the S-680A) against your peak reel-consumption rate.
Blade design and life — a rotational circular-gear blade (4× longer life than conventional cutters) reduces blade-change downtime.
Safety interlocks — require an emergency stop and an auto-stop when the collection bin is removed.
Noise level — sub-70 dB operation keeps the station factory-floor friendly without hearing-protection zones.
Power and footprint — confirm single-phase 220V compatibility and a compact, mobile (caster-mounted) footprint.

ROI, Quality & Throughput Considerations

The most defensible case for the S-680A is not the machine price — it is the cost of the manual process it retires. Repetitive scissor cutting concentrates three hidden costs: ergonomic injuries and their associated workers'-compensation and lost-time exposure; blade-laceration risk that triggers incident investigations; and scattered tape debris that can migrate onto the line and drive Feeder pickup errors and AOI false-calls.

Automating the task converts a variable, people-dependent risk into a fixed, predictable process. Operators are redeployed to value-adding tasks — Feeder loading, AOI review, and changeover prep — rather than standing at a scrap bin. Waste volume drops by up to 90%, lowering disposal and handling cost, and the enclosed, interlocked design removes the injury exposure that 5S and ISO 45001 audits are designed to catch.

FAQ

Q: Does the S-680A require a PC or external software?

A: No. It runs on a PLC with adjustable cutting speed and length — no external PC or programming is needed.

Q: Will it work alongside my existing Pick and Place brand?

A: Yes. It is brand-agnostic waste-side equipment and requires no interface with the Pick and Place machine, so it works beside Fuji, JUKI, Yamaha, Panasonic, Samsung/Hanwha, and ASM/SIPLACE lines alike.

Q: How much does it reduce scrap volume?

A: The integrated collection bin reduces loose waste volume by up to 90% versus tangled, uncut carrier tape.

Q: What safety features are built in?

A: An emergency stop and an auto-stop that triggers when the collection bin is removed, plus an enclosed rotational blade that removes the operator from the cutting path.

Q: Is it suitable for high-volume, multi-shift operations?

A: Yes — the S-680A is designed for continuous EMS production, and its 4× blade life and single-phase, low-maintenance design keep it running across day and night shifts.

Q: Can I get support and spare parts?

A: Yes. Southern Machinery provides direct engineer communication, remote video commissioning, and spare parts (including blades) shipped from Shenzhen with DHL express.

Contact Southern Machinery

The S-680A is one module in Southern Machinery's full-line SMT and THT automation portfolio — from Pick and Place and Reflow Ovens to Wave Soldering, board handling, and inspection. Founded in 2011 in Shenzhen and trusted by 237+ global customers, Southern Machinery combines Shenzhen-direct cost efficiency with global after-sales support, spare parts, and training.

How many operator-hours does your team currently spend cutting scrap tape, and what would recovering that time do for your line's throughput? If a single benchtop station could eliminate your scissor-cutting injury exposure and cut waste volume by 90%, how soon would you want it on the floor?

Contact Jason Wu at Southern Machinery:

Email: jasonwu@smthelp.com
Phone / WhatsApp: +86 13602562576
Website: https://www.smthelp.com
File Portal: https://file.autoinsertion.com
Image Library: https://ph.smthelp.com

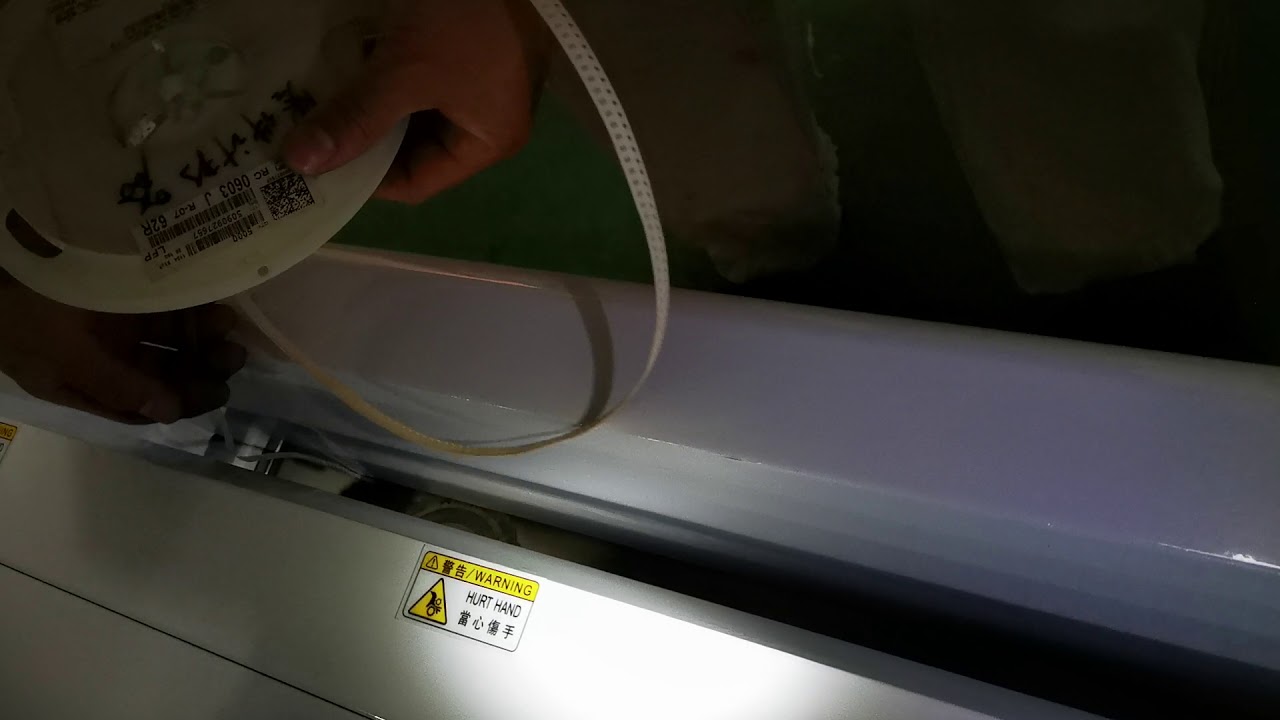

Watch in Action: S-680A SMT Reel Scrap Tape Cutter — Machine Working
