SMT Reel Scrap Tape Cutter by Southern Machinery: 5S Lean Waste Management for EMS Factories

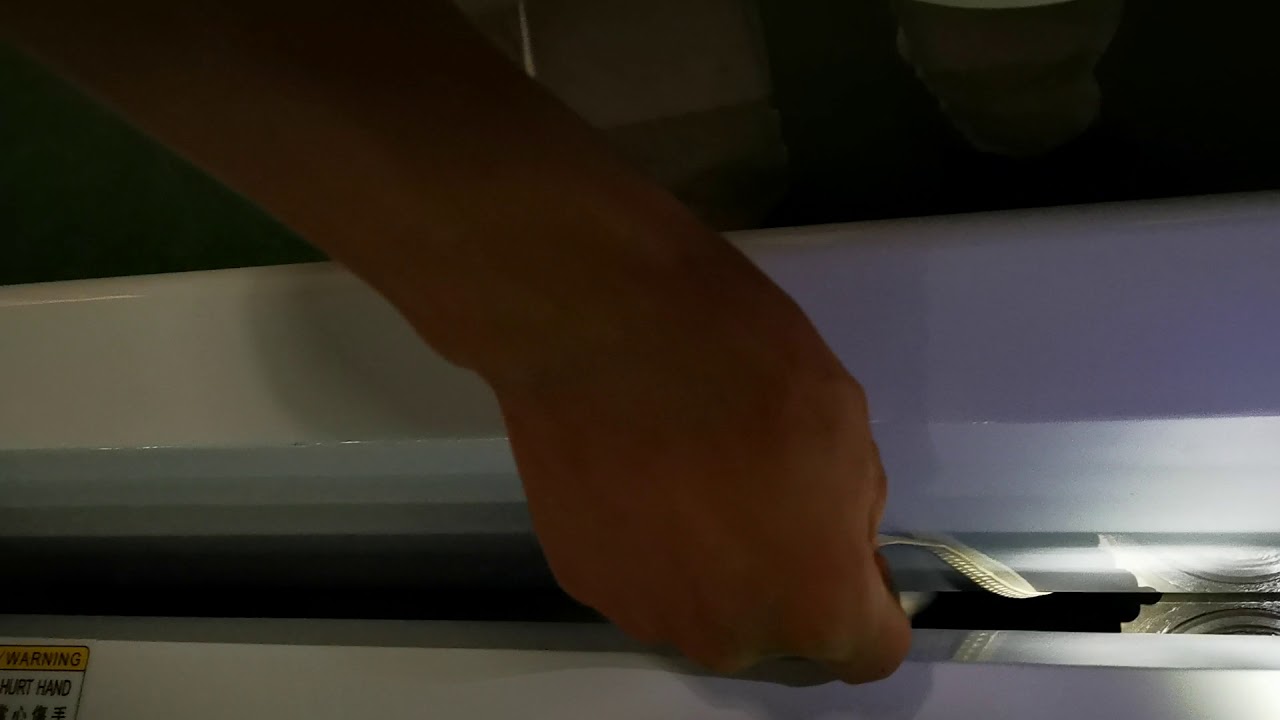

Watch in Action: How to 5S Your EMS Factory with the S-680A

What Is This Machine Used For?

The S-680A is Southern Machinery's automatic scrap tape cutting machine for SMT Pick and Place lines. Every time a component reel is consumed and a Feeder is reloaded, the operator is left with long strips of spent carrier tape — either paper or embossed plastic. Left unmanaged, this tape tangles into bulky, dirty piles on the factory floor, filling bins quickly and pulling operators away from productive work.

The S-680A eliminates that problem at the source. An operator simply feeds the spent tape into the machine, and PLC-controlled rotary blades cut it into uniform 5–150 mm segments that drop into an integrated collection bin. The result is waste volume reduced by up to 90%, a clean 5S-compliant floor, and tidy, recyclable output that is easy to track for ESG reporting.

What the S-680A Does

Automatically cuts paper carrier tape (8–32 mm) and embossed plastic tape (8–56 mm)
Produces uniform 5–150 mm segments with PLC-adjustable cutting length
Collects cut waste in an integrated bin with an auto-stop safety interlock
Runs at approximately 76 mm/sec using a rotational circular gear blade rated for 4× longer life than conventional cutters

What It Does Not Do

The S-680A is waste-side auxiliary equipment. It does not splice carrier tape, load Feeders, or interface with the Pick and Place machine's MES. It processes carrier tape after the reel is consumed, not during production.

Typical Application Scenarios

High-Volume EMS and ODM Contract Manufacturing

Factories running three or more SMT lines and consuming 50+ reels per shift generate a continuous carrier-tape waste stream. The S-680A keeps line-side areas clean without pulling operators away from value-add tasks such as AOI inspection and Feeder loading.

Automotive and Medical Electronics

High-reliability assembly demands disciplined 5S and traceable waste handling. Automated tape cutting removes loose debris that can contaminate PCBA handling areas and supports the documentation rigor these regulated sectors require for customer audits.

Industrial Control and Power Supply

Energy-saving power supplies, ballasts, and vehicle power systems are produced in long, high-volume runs where reel changeovers happen constantly. Automated waste handling keeps the line moving and the floor audit-ready between shifts.

LED Lighting and Consumer Electronics

LED lighting, displays, and consumer products combine high throughput with tight cost margins. The S-680A's low labor footprint and 90% waste-volume reduction translate directly into lower disposal cost and cleaner production cells.

How It Integrates Into a Complete PCB Assembly Line

The S-680A is a compact, standalone benchtop unit that sits beside the Pick and Place machine or in the Feeder preparation area. It requires no machine-to-machine interface and works alongside every major Pick and Place brand — Fuji, JUKI, Yamaha, Panasonic, Samsung/Hanwha, and ASM/SIPLACE.

In a complete SMT line — Stencil Printer → SPI → Pick and Place → Reflow Oven → AOI — the S-680A closes the loop on the material-supply side by handling the waste stream that every Feeder changeover produces. Because Southern Machinery supplies the full line, from screen printers and Pick and Place machines to Reflow Ovens, Wave Soldering, board handling, and inspection, the S-680A fits naturally into a broader factory-automation roadmap rather than existing as an isolated point tool.

Key Selection Parameters

When evaluating a scrap tape cutter for your SMT lines, confirm these parameters with your supplier:

Tape width range — paper vs. embossed plastic, and the maximum width your lines actually consume
Cutting length range and adjustability — the S-680A offers 5–150 mm PLC-adjustable segments
Blade type and service life — rotary gear blades outlast conventional linear blades by up to 4×
Collection capacity and safety interlock — an auto-stop that triggers when the bin is removed protects operators
Power requirements — the S-680A runs on 220V single-phase, 50/60 Hz
Footprint and mobility — benchtop form factor with casters for easy repositioning between lines
Noise level — under 70 dB for comfortable operation on the factory floor

ROI, Quality & Throughput Considerations

Labor Cost

Manual tape cutting typically consumes 30–60 minutes of operator time per line per shift. Automating it frees operators to focus on higher-value work such as Feeder loading, AOI inspection, and line-changeover preparation. At standard EMS labor rates, the S-680A often pays for itself within a single year — and frequently sooner on multi-line installations.

5S and Safety

Loose scrap tape is a classic 5S audit failure and a slip/trip hazard. By containing cut waste in an integrated bin and reducing volume up to 90%, the S-680A removes the most visible source of floor clutter and reduces repetitive-strain and scissor-injury risk from manual cutting.

ESG and Waste Tracking

Manual tape disposal is untrackable and non-optimized. Automated cutting produces uniform, compact, recyclable output that can be weighed and reported — supporting the waste-data requirements of ESG and ISO audit programs.

Throughput

The real ROI of the S-680A is throughput, not headcount. Operators who no longer stand at a bin with scissors can be redeployed to tasks that directly raise line utilization and CPH.

FAQ

What tape types can the S-680A cut?

It handles paper carrier tape from 8–32 mm and embossed plastic carrier tape from 8–56 mm, covering the majority of tape-packaged SMD components used on modern SMT lines.

Does the S-680A need a PC or external controller?

No. It uses built-in PLC control with adjustable cutting speed and length, so it is plug-and-play with no external PC or MES integration required.

Is it compatible with my Pick and Place brand?

Yes. The S-680A is a standalone unit that works alongside Fuji, JUKI, Yamaha, Panasonic, Samsung/Hanwha, and ASM/SIPLACE machines with no interface needed.

How much can it reduce waste volume?

Up to 90%. Cutting long carrier tape into compact 5–150 mm segments and collecting them in an integrated bin dramatically reduces bulk and disposal frequency.

What safety features are included?

An emergency stop plus an auto-stop interlock that halts the machine when the collection bin is removed, keeping operators protected during changeovers.

What power supply does it require?

220V single-phase, 50/60 Hz — compatible with standard factory power in most export markets.

Contact Southern Machinery

If manual scrap tape handling is consuming operator time, failing 5S audits, or creating safety risks on your SMT floor, the S-680A is a fast, low-risk automation win.

A question to consider: how many operator-hours per shift are currently lost to cutting and disposing of carrier tape across your lines — and what would redeploying that time to Feeder loading or AOI do for your throughput?

Another to weigh: is your current waste handling documented well enough to satisfy an ESG or ISO audit, or is carrier tape still an untracked, unbudgeted line item?

Get the full S-680A specification sheet, a working video, and a tailored ROI calculation:

Email: jasonwu@smthelp.com
Phone / WhatsApp: +86 136 0256 2576
Website: https://www.smthelp.com
File Portal: https://file.autoinsertion.com
Image Library: https://ph.smthelp.com

Southern Machinery, founded in 2011 in Shenzhen, China, specializes in SMT and THT PCB assembly automation with 237+ global customers. We deliver full-line solutions — SMT, THT, Wave Soldering, board handling, and inspection — backed by global support, spare parts, and training.
