Feeder-empty stops are one of the most predictable losses on an SMT line: a reel runs out, the Pick and Place machine halts, and an operator re-splices by hand while production waits. The S-0808S auto splicing machine from Southern Machinery joins two rolls of 8 mm SMT carrier tape automatically in about 8 seconds, with 0.1 mm connection precision and a documented ≥97% splice pass rate. It is mobile and battery-powered — more than 16 hours per charge — so it works line-side and supports two-lines-one-person operation. This guide explains what the S-0808S does, where it fits in a PCB assembly line, its documented specifications, and the parameters buyers should confirm before ordering.
Sep 25, 2026 · Updated Sep 25, 2026 · Southern Machinery
S-0808S Auto Splicing Machine: Cut SMT Feeder-Empty Downtime by Southern Machinery
Every SMT line carries a hidden, repeatable cost: a Feeder runs empty, the Pick and Place machine stops, an operator walks over, cuts and re-splices the carrier tape, and production waits. Multiply that across dozens of Feeders and every reel change in a shift, and the lost minutes become lost hours. The S-0808S auto splicing machine from Southern Machinery is built to take that stop out of the schedule. It joins two rolls of 8 mm SMT carrier tape automatically in about 8 seconds, and it is mobile and battery-powered, so it can be brought to the line instead of the line waiting for a splicer.
Southern Machinery has designed and built SMT and THT PCB assembly automation equipment in Shenzhen, China since 2011, and has supported 237+ electronics manufacturers worldwide. This article explains what the S-0808S does, where it fits in a PCB assembly line, which parameters to confirm before you buy, and how to judge the return.
What is the S-0808S auto splicing machine used for?
Q: What does this machine actually do?
A: The S-0808S makes an automatic butt joint between two rolls of SMT material strap (carrier tape). Instead of an operator hand-applying splice tape, the machine uses optical fiber to detect the presence of material and automatically calibrates the splice position before joining the tape ends, so the Feeder keeps feeding and the Pick and Place machine keeps running.
Q: Which tape does it handle?
A: Southern Machinery documents the S-0808S for adhesive tape and paper tape with a width of 8 mm and a thickness of 0.25–1.3 mm. The company states the machine is applicable to over 99% of materials in the market, and asks buyers to confirm special materials with Southern Machinery before ordering.
Q: How fast and how accurate is one splice?
A: The documented splicing cycle is about 8 seconds (automatic unloading time is not included), with a connection precision of 0.1 mm and a documented splicing pass rate of ≥97%.
Q: Who is it for?
A: Any SMT line where reel changes interrupt placement — EMS and ODM factories, automotive and medical electronics, industrial control, appliances, power supply and LED lighting assemblers running high-mix or high-volume production.
Typical application scenarios
- High-mix EMS / ODM lines. Frequent reel changes are the norm, and each empty Feeder is a micro-stoppage. Automatic splicing keeps placement heads busy and shortens the operator's walk-and-thread cycle.
- Automotive and medical electronics. Where a wrong or missing component is a quality event, not just a delay, the S-0808S's optical detection, empty-material-position detection and optional barcode fool-proof function add verification to the material flow.
- Appliances, power supply and LED lighting. Long, repetitive runs benefit most from uninterrupted feeding, because the cost of a single line stop is repeated all day.
- THT and mixed-technology factories. The same material-handling discipline that keeps SMT Feeders loaded also supports the reel-fed side of insertion and Wave Soldering operations.
How the S-0808S fits into a complete PCB assembly line
An auto splicing machine is not a machine in the middle of the line — it is a material-handling station at the edge of it. In practice it supports the SMT process in three ways:
1. Line-side rather than offline splicing

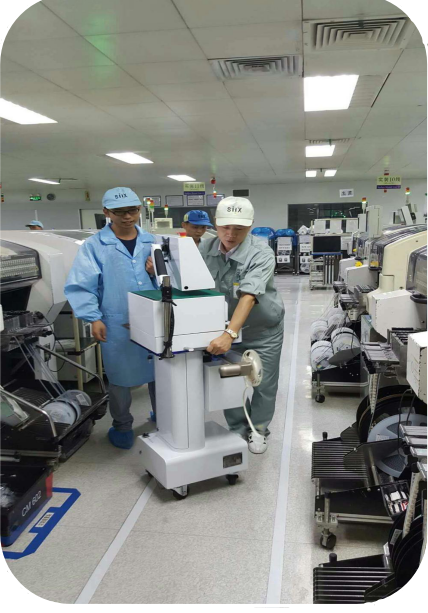

Because the S-0808S is powered by a lithium battery (DC 36 V or 24 V) and runs more than 16 hours on a full charge, it can be moved between lines. Southern Machinery describes this as mobile operation that can enable two-lines-and-one-person working, depending on how the client's line body is planned. The unit weighs 68 kg and measures L520 × W460 × H1340 mm, so it is designed as a movable station, not a fixed bench tool.
2. Feeding the SMT placement stage
Splicing sits directly upstream of the Pick and Place machine. Keeping 8 mm carrier tape continuous means Feeders do not run dry mid-panel, so placement and Reflow Oven scheduling stay stable.
3. Connecting to process control
The machine includes a barcode material-scanning function that can optionally be connected to the customer's Fool-Proof system. That gives quality and MES-oriented factories a documented material check without changing the rest of the line. For mixed SMT/THT plants, Southern Machinery can advise how the station pairs with Feeders, Nozzles, Board Handling and inspection equipment as part of a full-line solution.
S-0808S documented specifications
The values below are as published by Southern Machinery for the S-0808S. Confirm any special material or configuration with the factory before ordering.
| Parameter | Documented value |
|---|---|
| Product size | L520 × W460 × H1340 mm |
| Operation height | 910 mm |
| Splicing cycle | ~8 s (automatic unloading time not included) |
| Connection precision | 0.1 mm |
| Tape application | Adhesive tape and paper tape, 8 mm width, 0.25–1.3 mm thickness |
| Power supply | Lithium battery, DC 36 V or 24 V |
| Work period | >16 h on a full battery |
| Charging voltage | 220 V 50 Hz |
| Low-voltage alarm | Yes — reminds the operator to recharge or replace the battery |
| Material loss | Empty material-position detection function |
| Pass rate of splicing | ≥97% |
| Mechanical noise | <50 dB |
| Rated power | 150 W |
| Vacuum pressure | −30 kPa |

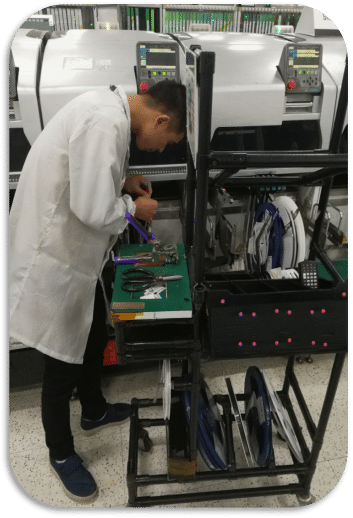

| Material strap wrap-up | Button-controlled automatic material pick |
| Auxiliary material | 3000 pieces of tape per roll |
| Fool-proof system | Barcode material scanning; optionally connected to the customer Fool-Proof system |
| Product weight | 68 kg |
| Ambient temperature | 0 to +40 °C |
| Ambient humidity | 10–95% RH (no condensation) |
Key selection parameters buyers should confirm
This checklist uses the documented S-0808S figures plus the general questions any SMT material-handling buyer should settle before quoting:
- Tape width and thickness. The S-0808S is documented for 8 mm tape at 0.25–1.3 mm thickness. If your product mix uses other carrier tapes, confirm coverage with Southern Machinery first.
- Splice acceptance criteria. Ask how pass rate (documented ≥97%) and connection precision (0.1 mm) are measured on your tape type, and what pull-strength standard your process requires.
- Operating model. Decide whether the station will be fixed line-side or moved between lines, and how many lines one operator will cover.
- Battery runtime vs shift pattern. The S-0808S runs over 16 hours per charge; map that against your shift and charging window, and confirm the 220 V 50 Hz charging arrangement.
- Fool-proof and traceability. Confirm whether you need the barcode scan option and connection to your existing Fool-Proof or MES system.
- Environment. The unit is documented for 0–40 °C and 10–95% RH without condensation, and should be kept at least 3 m from high-voltage or power equipment.
- Operator skill and training. Southern Machinery documents that about 10 minutes of study is enough for skilled operation, which reduces dependence on a single trained person.
ROI, quality and throughput angle
The return on an auto splicing machine is best framed in three currencies:
- Throughput. Every avoided Feeder-empty stop is time the Pick and Place machine keeps placing. An 8-second splice cycle done proactively is far cheaper than an unplanned line stop.
- Quality. Optical detection of material, empty-position detection and the optional barcode fool-proof function reduce the chance of a wrong or missing component reaching the panel. The documented ≥97% splice pass rate gives a measurable acceptance figure to track.
- Labour and flexibility. Mobile, battery-powered operation supports a two-lines-one-person model and documented 10-minute learning, so the material-handling step is less dependent on scarce, highly trained operators.
Because Southern Machinery publishes the operating figures rather than marketing estimates, you can build your own payback model from your line's actual stop time, reel-change frequency and labour rate.
Frequently asked questions
What is an auto splicing machine in SMT?
It is a material-handling machine that joins the end of one SMT carrier tape to the beginning of the next reel automatically, so the Feeder never runs empty and the Pick and Place machine does not stop for a reel change.
Does the S-0808S work on all SMT tapes?
Southern Machinery documents it for adhesive tape and paper tape of 8 mm width and 0.25–1.3 mm thickness, stated as applicable to over 99% of materials in the market. Special materials should be confirmed with the factory.
Is the S-0808S battery operated?
Yes. The documented power supply is a lithium battery at DC 36 V or 24 V, giving more than 16 hours of work on a full charge, with a low-voltage alarm and 220 V 50 Hz charging.
How long does one splice take, and how reliable is it?
The documented splicing cycle is about 8 seconds, with 0.1 mm connection precision and a splicing pass rate of ≥97%.
Can the S-0808S connect to our MES or fool-proof system?
The machine includes barcode material scanning, and Southern Machinery documents that it can optionally be connected to the customer's Fool-Proof system.
How does an auto splicing machine reduce cost?
By keeping Feeders loaded it cuts unplanned line stops, and its mobile, battery-powered design supports two-lines-one-person operation with about 10 minutes of learning, so material handling needs fewer skilled operators.
Get a configuration recommendation from Southern Machinery
Choosing an auto splicing machine is a question of tape type, operating model and integration, not just a price list. Southern Machinery can match the S-0808S configuration to your SMT/THT lines and full-line plan.
- Ask for configuration advice: email jasonwu@smthelp.com or call/WhatsApp +86 13602562576.
- Browse product catalogues and manuals: file.autoinsertion.com
- See machine photos: ph.smthelp.com
- Company: Southern Machinery, Shenzhen, China — SMT and THT PCB assembly automation equipment, full-line solutions including insertion, Wave Soldering, Board Handling and inspection.
Founded in Shenzhen in 2011, Southern Machinery has supported 237+ customers worldwide.
